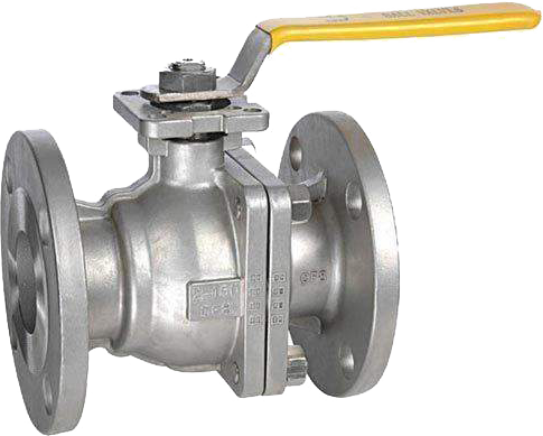

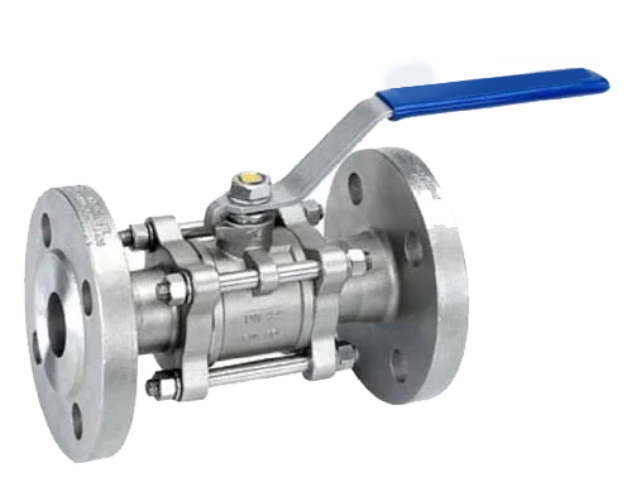

BALL VALVE (Floating & Trunion Mounted)
PRODUCT SPECIFICATION
Range & End Connections: 1/2" to 2" (for Screwed/Socket/Buttweld Ends)
1/2" to 12" (for Flanged Ends)
Rating : CL 150, CL 300, CL 600, CL 800
Compliance Standard : ISO 17292/BS5352, API 6D
Testing Standard : BSEN 12266-1, API 6D, ISO 5208
Face To Face : As per ASME B 16.10 & API 6D
End Flange Dimension : As per ASME 16.5, В 16.11 & B 16.25
Fire safe Design : As per API 6FA/API 607
Body Type : Two/Three Piece Design
Port : Full Bore/Reduced Bore
Operation : Lever / Gear / Pneumatic / Electrical Actuator
DESIGN FEATURES
Antistatic device & Blowout proof stem
Double Block & Bleed (for TMBV)
Double Body Sealing
Sealant System & Lubrication
Corrosion Protection & Painting

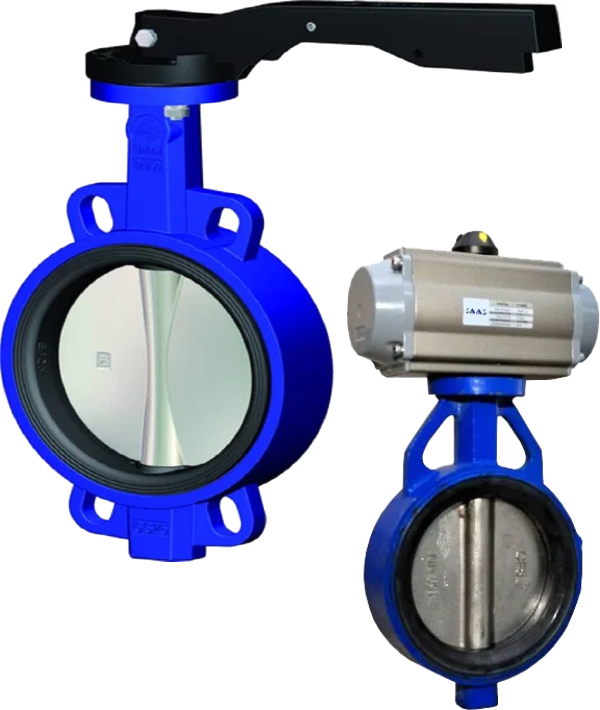

BUTTER-FLY VALVE
PRODUCT SPECIFICATION
Range: 1 1/2" to 24"
Rating : PN2.5 to PN16, CL150, CL300
End Connection: Wafer, Lugged and Flanged
Compliance Standard : API 609/BS EN 593/ASWWA-C504
Testing Standard : API 598
Face To Face : As per API 609
Disc : Centre Disc & Offset Disc (Double offset & Triple offset)
Lining : Rubber Lined
(Neroprene / Nitrile / Ebonite / EPDM / Natural / Viton / Silicon Teflon)
Operation : Lever / Gear / Pneumatic / Electrical Actuators
GATE VALVE
PRODUCT SPECIFICATION
Range: 1/2" to 24"
Rating: CL150, CL300, CL600, CL800, CL1500
End Connection: Flanged End (ASME B16.5), Butt Weld (ASME B16.25)
Socket Weld End (ASME B 16.11), Screwed End (ASME B1.20.1)
Compliance Standard: API 600, API 602, ISO 15761
Testing Standard: BS EN 12266-1, API 598
Face To Face: As per ASME B 16.10 & Manufacturing Standard
Operation: Hand Wheel / Gear / Pneumatic / Electrical Actuator

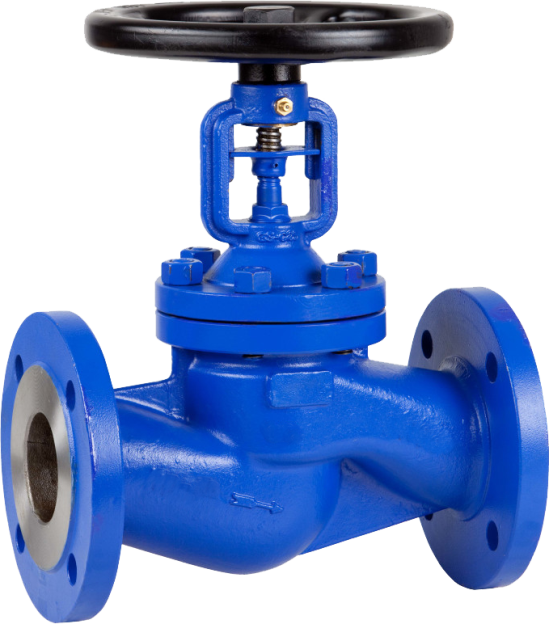

GLOBE VALVE
PRODUCT SPECIFICATION
Range: 1/2" to 16"
Rating: CL150, CL300, CL600, CL800, CL1500
End Connection: Flanged End (ASME B16.5), Butt Weld (ASME B16.25)
Socket Weld End (ASME B 16.11), Screwed End (ASME B1.20.1)
Compliance Standard: BS 1873, API 602, ISO 15761
Testing Standard: BS EN 12266-1, API 598
Face To Face: As per ASME B 16.10 & Manufacturing Standard
Operation: Hand Wheel / Gear / Pneumatic / Electrical Actuator

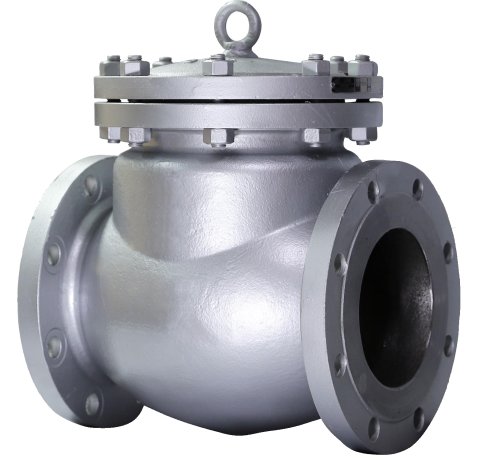

SWING CHECK VALVE
PRODUCT SPECIFICATION
Range: 1/2" to 24"
Rating: CL150, CL300, CL600, CL800, CL1500
End Connection: Flanged End (ASME B16.5), Butt Weld (ASME B16.25)
Socket Weld End (ASME B 16.11), Screwed End (ASME B1.20.1)
Compliance Standard: BS 1868, AP 602, ISO 15761
Testing Standard: BS EN 12266-1, API 598
Face To Face: As per ASME B 16.10 & Manufacturing Standard
KNIFE EDGE GATE VALVE
PRODUCT SPECIFICATION
Range: 2" to 28"
Rating: CL150, PN10
End Connection: Wafer, Lugged, Flanged End (ASME B16.5)
Compliance Standard: MSS SP 81
Testing Standard: MSS SP 151
Face To Face: As per MSS SP 81
Operation: Hand Wheel / Pneumatic / Hydraulic Cylinder
NEEDLE VALVE
PRODUCT SPECIFICATION
Range: 1/4" to 1 1/2"
Rating: CL800, CL1500
End Connection: Screwed / Socket Weld
Compliance Standard: ANSIB2.1, BS21, IS 554
ANSI - B16.11, IS - 4712
LIMIT SWITCH BOX
PRODUCT SPECIFICATION
Protection Class: Weather Proof IP 67
Operating Temperature: - 25 to +80 Degree
Cable Entry: 1/2" NPT, M20 X 1.5, 3/4" ET
Body Material / Coating: Aluminum die cast / Powder Coated

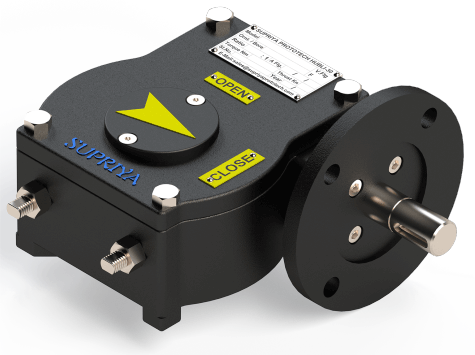

QUARTER TURN GEAR BOX
PRODUCT SPECIFICATION
Size : 22 to 250
MOC : Cast Iron
Torque : 20nm to 20,000nm
Mounting : ISO 5211

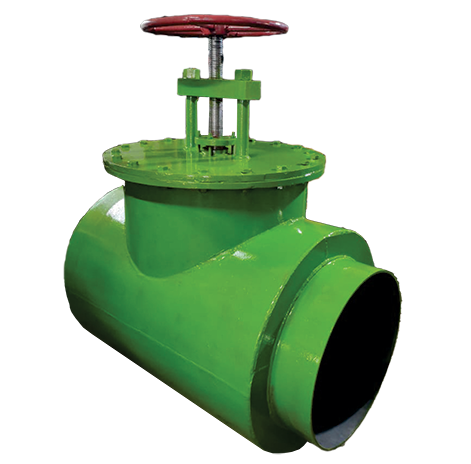

Green F Valve
PRODUCT SPECIFICATION
Fabricated Valves as per customized requirement
